Model:Z2R8152X-P

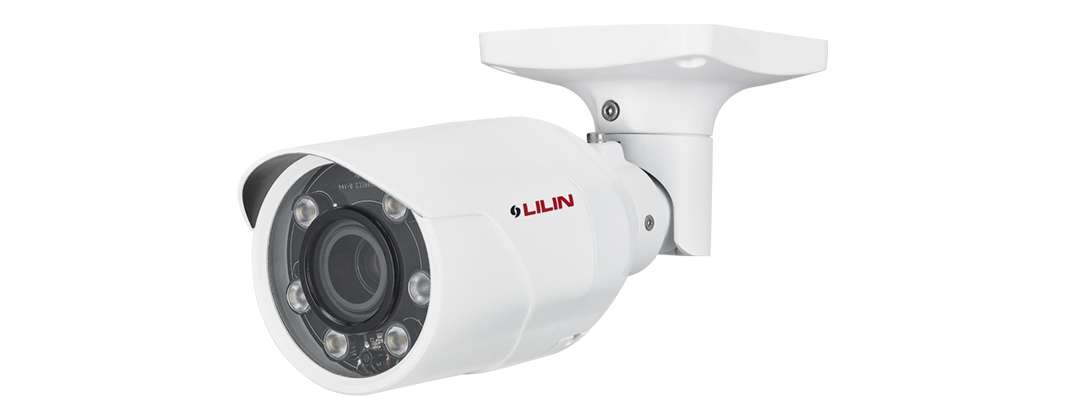

5MP Day & Night Auto Focus IR IP Bullet Camera

Model:Z2R8152X-P



        Features



  • 5 megapixel CMOS image sensor
  • 5MP H.265/HEVC and H.264/AVC high-performance video compression
  • Simultaneous streaming of H.265 and H.264 encoded streams
  • Auto focus with zoom / focus motorized lens
  • P-IRIS supported
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • HDR function up to 100dB
  • Digital PTZ supported
  • IVS supported
  • Tampering / Audio / Alarm / Motion / Network lost detection event function
  • High efficiency IR LED, radiant distance up to 40m
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out
  • ONVIF Profile S supported
  • IP68 rain and dust resistant



Model Z2R8152X-P
Image Sensor/Sensor type 1/2.8" CMOS image sensor
Effective pixels 2616 (H) × 1964 (V) = 5,137,824 (pixels)
Video Compression H.265/HEVC main profile, H.264 main and high profile , Motion JPEG
Resolution 5MP(2592 × 1944), 3.6MP(2560 × 1440), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240)
Frame Rates Normal mode: up to 25 fps @ 2592 × 1944
HDR mode: up to 15 fps @ 2592 × 1944
Min. illumination/Low Light Mode (Colour) Color : 0.01 Lux at F1.4 ; B/W : 0.005 Lux at F1.4 ; 0 Lux with IR LED ON
Lens 2.8 – 12 mm (zoom / focus motorized)
Iris F1.4 (W) – F2.8 (T)
Angle of View 87° (W) – 30°(T) (H) 62° (W) – 23°(T) (V) 114° (W) – 37°(T) (D)
Auto Focus One Push
Max IR distance 40M
Infrared LED Angle 60° , 90°
Video streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth
Video bitrate 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, Smart H.264/H.265
Scanning System Progressive Scan
IR cut filter Auto / Day (Color) / Night (Mono) / Schedule
Window / Glass Thickness Ø75 Heat Resistant Glass & Rain repellent glass
Peak wavelength 850nm
White Balance ATW-NARROW / ATW-WIDE / AWC(MANUAL)
3D Noise Reduction Off / 1 – 32 Selectable
2D WDR Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif
High Dynamic Range(HDR) Up to 100dB (by HDR mode, 2 shutter line interleave)
Privacy Masking Off / On (4 zones)
Sense Up Off / 1 Frame / 2 Frames
Sense Up+ Yes
Auto Gain Control 60 dB Variable Gain
Shutter Time 1/30(1/25)s – 1/30000s
Audio Two-way Audio, G.711 u-law / PCM / AAC, SIP, External Microphone Required
Audio Input / Output Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block
Video Management ONVIF Profile S / IVS events, LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API
Video Display LILIN Universal ActiveX , LILIN Java Applet
Protocols IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , SDDP, Bonjour , 802.1x
Alarm Input / output Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block
Access Multiple user access levels with password protection
User accounts 10 user accounts available
Encryption Base64 HTTP encryption, HTTPS encryption
OS Embedded Linux 3.10
CE CE : Yes, EMI Class B
FCC FCC : Yes, EMI Class B
Power Consumption DC12V, 12.5W / PoE, 14.5W
Power Supply DC12V ±10% / PoE (IEEE 802.3af compliant)
Network Interface/Ethernet 10/100 Mbps Base-T, RJ-45
IP Rating IP68
ePTZ & Digital Zoom Yes, ROI (Region of Interest)
CPU requirement Intel® Core™ i7 or higher grade
OS requirement Windows 7 or above
RAM requirement 8GB or above, Dedicated Graphics Card
Web browser Microsoft® Internet Explorer® 9 or above
Users 10 simultaneous users
Alarm event actions FTP / SMTP / HTTP post / SD card / SAMBA / SMTP Trap
Alarm event triggers Motion / Tamper / Audio / Alarm / Network lost detection / SmartEvent
OSD (On-Screen Display) Position configurable text overlay for date, time, camera ID, event status and watermark with customizable user demand data
SD Card (recording) Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included)
CPU Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory
IVS (Intelligent Video Surveillance) Motion Detection, Tampering Detection, Advanced Motion Detection, Tripwire, Traffic Light Detection, Object Counting
S / N Ratio More than 50dB (AGC off)
Image Effects Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation
Smart IR Yes
EV (Exposure Value) Adjustable
Lens distorsion correction (LDC) Yes
Authentication Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS
Multi IP address Yes
IP address filter IP address filter, MAC address filter
Maintenance Firmware update via HTTP and IP Scan; Firmware available at web site
Mobile phone Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support
Languages English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
Starting Temperature -10°C – +50°C (14°F – 122°F)
Operating temperature -40°C – +50°C (-40°F – 122°F)
Storage temperature -25°C – +60°C (-13°F – 140°F)
Operating humidity 0% – 90% RH
Dimensions 102.5(W) × 102.5(H) × 258(D) mm
Weight 1020g
Material/ Construction Aluminum alloy
