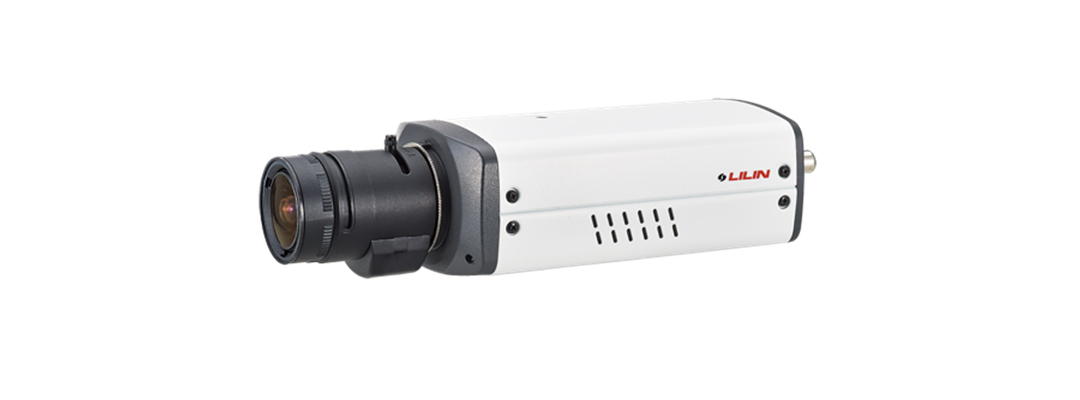

4K Day & Night IP Box Camera





  • Ultra HD 12.0 megapixel CMOS image sensor
  • 4K True H.264 AVC High Profile video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • Digital PTZ supported
  • Tampering / Audio / Motion detection alarm function
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out
  • ONVIF supported
  • RS-485 supported



4K Ultra HD Camera – UHG1182, is featuring 30FPS and 3,840-by-2,160-pixel picture. As the demand of super resolution in video surveillance is on the rise, 4K is the stepping stone of prevalent 1080P Full HD. LILIN’s new 4K Ultra HD network camera, UHG1182, enhances HD images by providing four times HD picture with beautifully natural detail and astounding saturated colors. 4K Ultra HD video doubles the vertical resolution from 1080P to 2160P vertical lines of resolution. The UHG1182 is also available with ONVIF compliance.


Model UHG1182E
Image Sensor/Sensor type 1/2.3-inch CMOS
Effective pixels 4072 (H) × 3046 (V) = 12,403,312 (pixels)
Video Compression H.264 Main and High Profile, Motion JPEG
Resolution 4K(3840×2160), 1080P(1920×1080), 720P(1280×720), D1(720×480), CIF(352×240)
Frame Rates Single-stream mode, H.264 : up to 30 fps @ 3840 x 2160 ( Video only support preview mode) ; Multi-stream mode, H.264 : up to 24fps @ 3840 x 2160, 30 fps @ 1920 x 1080, Motion JPEG : up to 30fps @ 1920 x 1080
Video streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
Video bitrate 128Kbps 〜12Mbps ; Frame rate and bit rate controllable on-the-fly ; VBR / CBR / GOP supported
Scanning System Progressive Scan
IR cut filter Colour (Day), Monochrome (Night), Auto, Schedule, External control
Min. illumination/Low Light Mode (Colour) 0.5 Lux at F1.2 (Color); 0.1 Lux at F1.2 (B/W)
White Balance Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2
Back Light Compensation (BLC) On / Off
Shutter Time 1/30(1/25)s to 1/30000s
Sense Up Off / 1 frame / 2 frames
Sense Up+ Yes
Auto Gain Control 36 dB Variable Gain
3D Noise Reduction 1/30(1/25)s to 1/30000s
2D WDR Off / Auto / x2 / x3/ x4 (by normal mode)
Privacy Masking Four independent areas
Other functions Sharpness, Image flip, Image mirror, Defog, Hue
Live video CVBS 1.0Vp-p, 75 ohm, RCA connector
Audio Input / Output Mono, 1.4 Vp-p , 50 KΩ , 3.5mm phone jack
Encryption Base64 HTTP encryption
Access Multiple user access levels with password protection
User accounts 10 users accounts available
IP address filter Yes
Multi IP address Yes
Users 8 simultaneous users
ePTZ & Digital Zoom Yes, ROI (Region of Interest) is supported
OSD (On-Screen Display) Text overlay for date, time and camera name
Alarm event triggers Tampering / audio / motion /alarm detection triggering recording into SD card ; Image upload over HTTP, FTP, and E-mail by tampering / audio / motion detection
Alarm event actions FTP,SMTP, HTTP post, SD card, SAMBA
CPU Embedded SoC, 1.2GHz Dual ARM Cortex-A9 & 600MHz ARM11, 1GB DDR3, 256MB flash memory
Firmware Firmware upgrade via HTTP
Network Interface/Ethernet 10/100/1000Mbps Base-T, RT-45
CE Yes
OS requirement Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Web browser Microsoft® Internet Explorer® 6.0 and later
CPU requirement Intel Core 2 Duo E6400 2.13GHz or above
RAM requirement 2GB or above, Independent Display Card
Protocols IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour
Mobile phone Integrated to LILIN mobile app (LILINViewer) ; iPhone, iPad, Android support
Video Management ONVIF Profile S / LILIN NAV 1.0 / Third party VMS through LILIN HTTP API
Video Display LILIN Universal ActiveX & LILIN Java Applet
OS Embedded Linux 3.8.0
Audio Two-way Audio, G.711 u-law / PCM, Built-in Microphone
SD Card (recording) Support Micro SD/SDHC/SDXC card for circular recording (card is not included)
Alarm Input / output Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load max. 40VDC/300mA)
Operating temperature -25℃ to 50℃ (-13℉ to 122℉)
Dimensions 70mm(W) × 50mm(H) × 135mm(D)
Weight 420g approx.
Power Supply DC12V ±10% 。Power over Ethernet (IEEE 802.3af compliant)
PoE IEEE802.3af
Power Consumption DC12V, 7.2W / PoE, 8W
